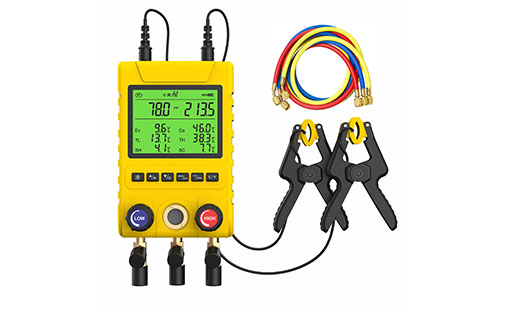

AMT100 Digital 2-Way Valve HVAC and Refrigeration Manifold Gauges

Order Number:

AMT100A: Digital manifold No temperature clamps

AMT100: Digital manifold with 2 temperature clamps

AMT100B: Digital manifold with 2 temperature clamps and refrigerant hose

Features:

1. Extra large LCD screen

2. Integral protection design

3. Quick search for common refrigerants

4. A2L Flammable Refrigerant Warning Reminder

5. Overload capacity of 2x range (10Mpa)

6. Key function design for zero-order menu

7. Pressure-holding leak test function with precise

8. Temperature compensation

9. APO function, automatically recognizes that the device is in an idle state and actively turns off the power to save energy

10. Temperature and pressure measurement; Holding Pressure Leakage Test; Vacuum measurement

Specifications:

1. Pressure measurement range: -14.5~500psi/ -14.5~800psi

2. Pressure display resolution: 0.5psi

3. Pressure measurement accuracy: ±0.5%FS

4. Pressure Unit: psi , bar, kg/cm2, inHg, kPa, MPa

5. Temperature measurement range: -50°C~150°C

6. Temperature display resolution: 0.1°C

7. Temperature measurement accuracy: ±0.5°C

8. Temperature Unit: °C/°F

9. Operating temperature and humidity: -10~50°C, 35%~ 85% RH

10. Battery life: 6 months

11. Battery: 3 x AAA

12. 2 channels: Red, blue

13. Maximum working pressure: 800psi

14. Refrigerant: 88 types
