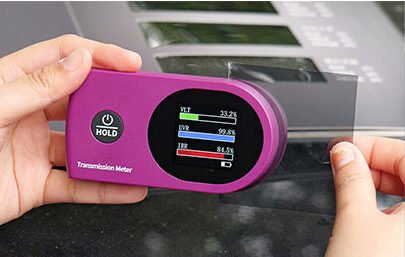

AMT537 Tint Solar Film Car Transmission Meter Filmed Glass Tester UV IR Rejection Meter Tint Meter Transmittance Tester Meter Total Solar Energy Rejection

Features:

1. It is a compact and portable transmission meter. It allows for simultaneous testing of infrared and ultraviolet rejection, visible light transmittance, Total Solar Energy Rejection (TSER), and Solar Heat Gain Coefficient (SHGC) across various film types, including solar control and safety films. The device supports multiple display configurations, enabling users to customize the data view to their specific needs.

2. Measure Seven Parameters: UV, Visible Light, IR 940nm, IR 1400nm, Full IR, TSER, SHGC

3. Easily switch between multiple display modes

4. Ideal for solar film demonstrations, manufacturing, quality control, and more

Specifications:

1. UV Peak Wavelength: 365nm

2. Visible Light Peak Wavelength: 380nm ~ 760nm, CIE function of photopic vision

3. IR Peak Wavelength: Peak wavelength 940nm, 1400nm and Full IR

4. Solar Heat Gain Coefficient: SHGC (0.000 ~ 1.000)

5. Total Solar Energy Rejection TSER: 0.0% ~ 100%)

6. Resolution: 0.1%

7. Accuracy: ±2% (colorless uniform light-transmitting material)

8. Maximum Sample Thickness: 0.8mm

9. Display: 240*240 dot matrix TFT color screen

10. Weight: about 70g

11. Size: 101mm x 52mm x 25.5mm

12. Power Supply: 4*AAA alkaline battery
