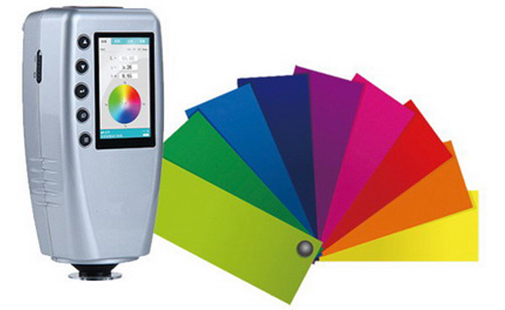

Handheld Colorimeter AMT568
Order Number: AMT568 (Measurement Caliber: φ8mm + φ4mm)
Order Number: AMT568X (Measurement Caliber: φ8mm + φ4mm + Φ40mm)
Features:
AMT568 includes 3 switchable calibers (4mm/8mm/40mm), It is a specially designed, high performance precision colorimeter, caliber 4mm can apply on small area, cambered and other special surface, caliber 8mm is a universal type for many field, also caliber 40mm can be used for huge, texture and pitting surface. It can bring great convenience for the user in the color quality detection on all kinds of measuring material
Specifications:
1. Color Space: CIELAB, CIELCH, CIEXYZ, sRGB
2. Color Difference Formula: △E*ab △E*LCH
3. Measurement Caliber: φ8mm + φ4mm (Standard) + Φ40mm (Optional)
4. Illumination Condition: CIE Recommendation:8/d
5. Light Source: D65 A F(CWF)
6. Sensor: Photodiode array
7. Observer: CIE 10°Standard observer
8. Measurement Range: L: 0 to 100
9. Repeated Accuracy: △E<0.06
10. Table Difference: △E<0.2
11. Measurement Interval: 0.5 Sec.
12. Storage Capacity: Type sample data : 100 groups with testing sample data: 200 groups
11. Lifetime of Bulb: 5 years more than 1.6 million measurements
12. Display Screen: TFT true color 2.8inch@(16:9)
13. Language: English/Simplified Chinese
14. Interface of External: USB2.0 (USB-B) RS-232 (115200bps)
15. Weight: 700g
16. Size: 199*68*90mm, Package Size: 400*240*340mm
17. Battery Charging Time: 8 hrs
18. Battery: Li-ion battery, 5000 times Measurement
19. Optional Accessories: Powder measuring device/Micro printer
