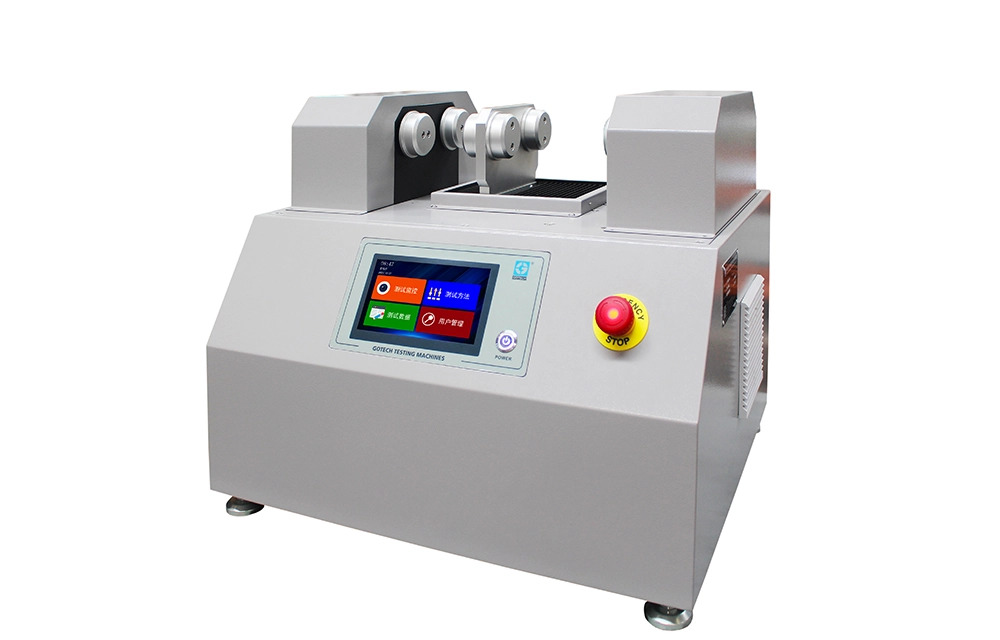

The coated fabric specimen is sewn into a cylindrical shape and repeatedly twisted and compressed between two discs to simulate the wrinkling and flexing conditions encountered in actual use.
The tester features four test stations, enabling simultaneous testing of multiple specimens to increase testing efficiency and support batch testing requirements.
Provides straightforward setup and control via an HMI touchscreen interface, reducing operational complexity.
The adjustable clamping collar design ensures secure specimen installation, improving test accuracy and repeatability.
Equipped with two independent drive systems: one powered by a three-phase motor driving an eccentric mechanism to produce horizontal movement of the specimen holder; the other is driven by a servo motor to generate wrinkling and flexing motion, ensuring precise and stable testing.
Features an intuitive touchscreen interface that enhances operational efficiency and reduces complexity.
Equipped with four test stations, allowing simultaneous testing of multiple specimens to improve efficiency and support batch testing requirement.
The adjustable clamping collar design ensures secure specimen installation, improving test accuracy and repeatability.
Equipped with a dual-drive system to apply horizontal movement and flexing motion to specimens, ensuring precise and stable testing.
Includes an emergency stop switch to ensure operational safety, reduce the risk of accidents, and protect both operators and equipment.
| Twisting rate | 200+10 rpm |
| Compression rate | 152+4 cpm |
| Test station | 4 |
| Rotation angle | 90+0.5° |
| Stroke | 70±1mm |
| Specimen size | 190mm length and 64mm inner diameter |
| Dimensions (approx.) | 65×56×56cm（W×D×H） |
| Power | 1∮ AC 220V 50/60Hz (or specify) |
