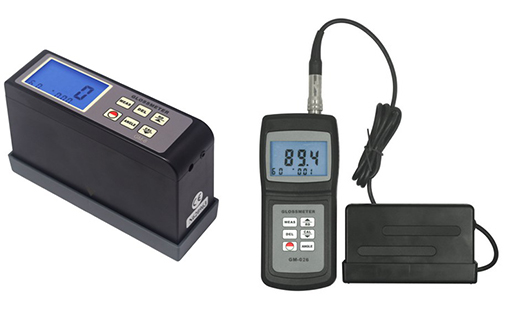

GM-26 (Build In Sensor) GM-026 (Separated Sensor) 2 Angles 20/60 Degree Gloss meter

2 Angles 20/60 Degree Gloss meter GM-26 (Build In Sensor) GM-026 (Separated Sensor)

Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.
1. In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
2. Accurate measurement, good repetitiveness.
3. Small in size, easy to carry.
4. Auto calibration.
5. Intelligent design, rapid measurement.
6. Able to store 254 groups of measurements.
7. Built-in lithium ion rechargeable battery.
8. Backlight display, suitable for low light environment.
9. Optional USB data output and RS-232 data output to connect with PC.
10. Optional Provide Bluetooth data output choice.
11. Display: 4 Digits Backlit LCD
2. Measuring Geometry: 20/60 Degrees
3. Range: 0.1 ~ 200 GU
4. Accuracy: ±1.0 GU
5. Resolution: 0.1 GU
6. Repeatability: ±0.5 GU
7. Measuring Area: 7 x 14mm (Ellipse)
8. Data Memorized: 254 Groups
9. Working Condition: Temperature: 0~40˚C, Humidity: <85%
10. Power Supply: 4 x 1.5v AAA size (UM-4) battery)
11. Dimensions: Unit: 156 x 67 x 28mm; External Probe: 58 x 28 x 108mm
12. Weight: 190g (Not Including Batteries)
