The Martindale tester is specifically designed to determine the durability and resistance of textile fabrics, shoe uppers, shoe linings, and shoe soles to abrasion. During a Martindale test, specimens are subjected to repeated abrasion in a Lissajous pattern until a specified number of cycles is reached.
Ideal for fitting materials commonly used in the textile and footwear industries, such as textile fabrics, shoe uppers, shoe linings, and shoe soles.

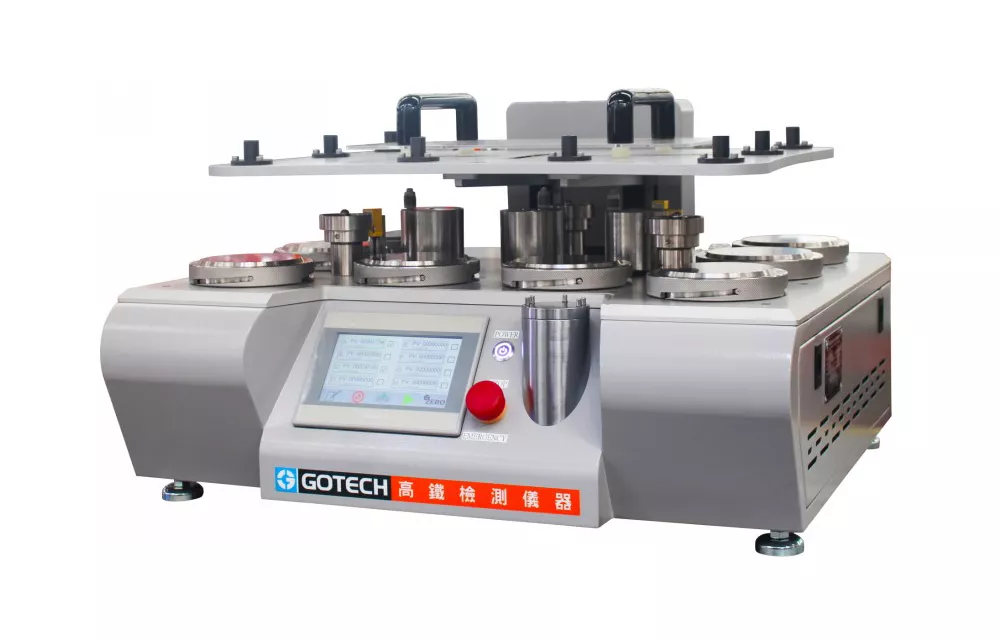

To enhance work efficiency, the GT-7012-M8A features multiple test stations, allowing up to 8 specimens to be tested simultaneously.
By rubbing specimens in a Lissajous pattern, the GT-7012-M8A simulates the effects of rubbing in various directions.
Simulates daily wear to ensure the performance and service life of materials in real-world scenarios.
Allows operators to set and modify the number of cycles, ensuring test conditions conform to referenced standards.
Enables operators to assess material performance against abrasion by observing the degree of wear on sample subjected to abrasion testing.
Ensures that products meet industry standards and satisfy quality expectations in the market.
Through our patented design (patent number: M601343), the motion plate can be lifted effortlessly, reducing efforts and increasing work efficiency.
Replicate the results of wearing and tearing through rubbing specimens in a Lissajous pattern.
Up to 8 specimens can be tested simultaneously without interference, increasing work efficiency.
This instrument is capable of performing either dry or wet abrasion tests.
The intuitive and user-friendly interface enables operators to effortlessly set parameters and operate tester.
Supportsing both English and Chinese languages to meet user needs.
| Controller | HMI+PLC |
| Load | 795 ± 7g (12kPa); 595 ± 7g (9kPa) |
| Test figure | 60.5*60.5mm |
| Compression weight | 2.5±0.5kg; 120±10mm diameter |
| Specimen holder insert | Diameter: 28.65 ± 0.25 mm |
| Distance between ring of holder nut and surface of holder insert: 1.05±0.1mm | |
| R: 0.10-0.05 mm | |
| Speed | 47.5 ± 2.5 cpm |
| Test stations | 8 |
| Dimensions | 79 cm ×75 cm ×48 cm (W×D×H) |
| Power | 1∮ AC 220V 50/60Hz (or specify) |
