The force transducer mounted on the rotational plate directly detects the applied force to the test specimen during flexing.
Utilizes high-precision encoder to detect and monitor the angle during test, ensuring accurate test data.
Precisely flexes shoe specimen at a constant speed, simulating its deformed condition during use.
The specialized toecap clamp ensures secure clamping of the specimen, guaranteeing test precision and repeatability.
Records test data to assist operators in conducting further analysis.
The touchscreen provides a user-friendly platform, enabling operators to efficiently monitor and operate the tester.
The intuitive interface allows operators to learn and use the instrument effortlessly with minimal training.

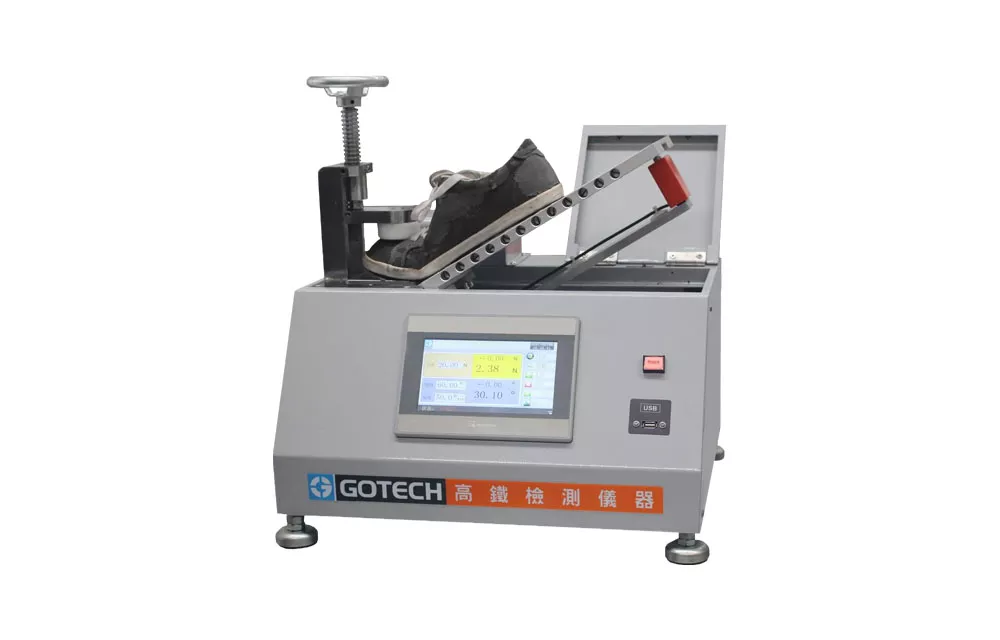

Featuring easy setup and test procedures, the GT-7011-PNA enables operators to conduct tests effortlessly.
| Capacity | 200N |
| Control system | HMI+PLC |
| Flexing speed | 0 to 5 rad/min |
| Length of moment arm | 315 mm |
| Flexing position | One third of the shoe length |
| Test specimen | France 42 (UK 8), France 39 (UK 6) |
| Angle display range | 0 to 65° |
| Angle resolution | 0.1° |
| Load resolution | 1/50000 |
| Dimensions (W×D×H) | 50×45×51 cm |
| Weight | 35 kg |
| Power | 1∮, 220V, 50Hz |
