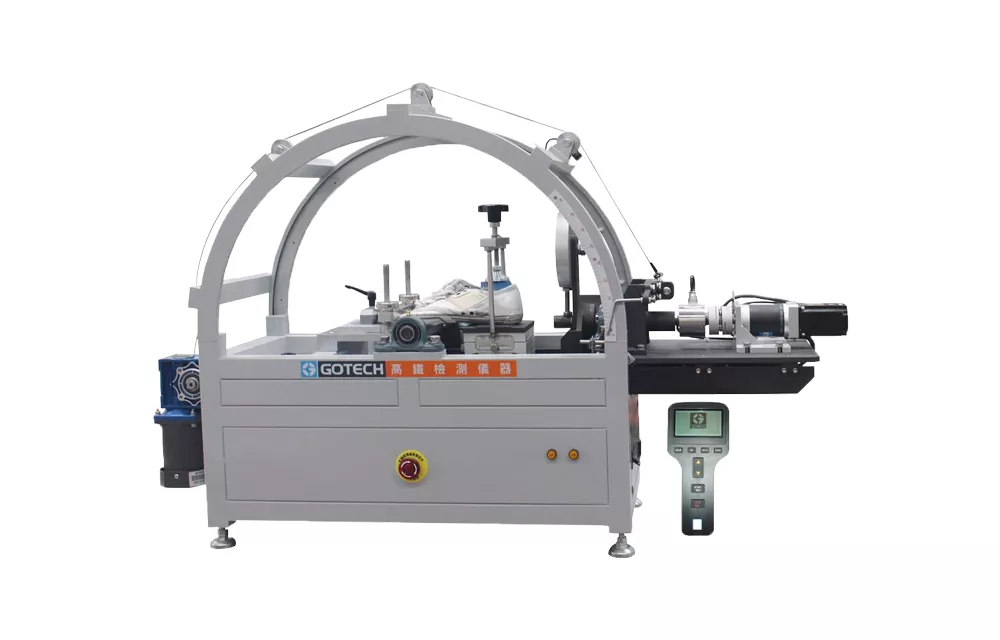

The GT-7011-PNC is specifically designed to assess the torsional resistance of shoes. While the specimen is securely clamped in place on a platform, its heel is twisted in both clockwise and counterclockwise directions at a specific angle and speed. Once the predetermined angle is reached, the corresponding torque is measured.
Utilizes advanced torque sensor to precisely capture test data, enabling operators to accurately assess the torque performance of footwear.
Enables manufacturers to verify the torsional performance of finished shoes, ensuring their products meet specific quality standards.
Equipped with a dedicated computer control system, this instrument performs automatic operation during testing, minimizing human errors and enhancing work efficiency.
To minimize manual intervention, this instrument can automatically perform tests and efficiently capture test data, significantly reducing production time and costs.
Utilizes advanced torque sensor to precisely capture test data, enabling operators to accurately assess the torque performance of footwear.
Using a high-precision servo control system, the GT-7011-PNC ensures precise speed control to maintain high stability during operation.
The dedicated software and flexible parameters settings allow operators to easily set and modify test conditions to meet a variety of testing requirements.
By monitoring and recording real-time data during test processes, the GT-7011-PNC offers clear insights into both the test development and the test results.
Allows operators to record and search test results to assist them in materials performance evaluation.
Equipped with safety features such as overload protector and emergency stop switch, this instrument ensures user safety during operation.
| Flexing position | One third of the shoe length |
| Capacity | 30N·m |
| Control system | Computer system+Leader Ⅱ testing software |
| Torsion angle | 0 to ±35° |
| Angle resolution | 0.1° |
| Load resolution | 1/50000 |
| Torsion speed | 0 to 10 rad/min (adjustable) |
| Dimensions (W×D×H) | 136×44×90 cm |
| Weight | 65 kg |
| Power | 1∮ AC220V |
