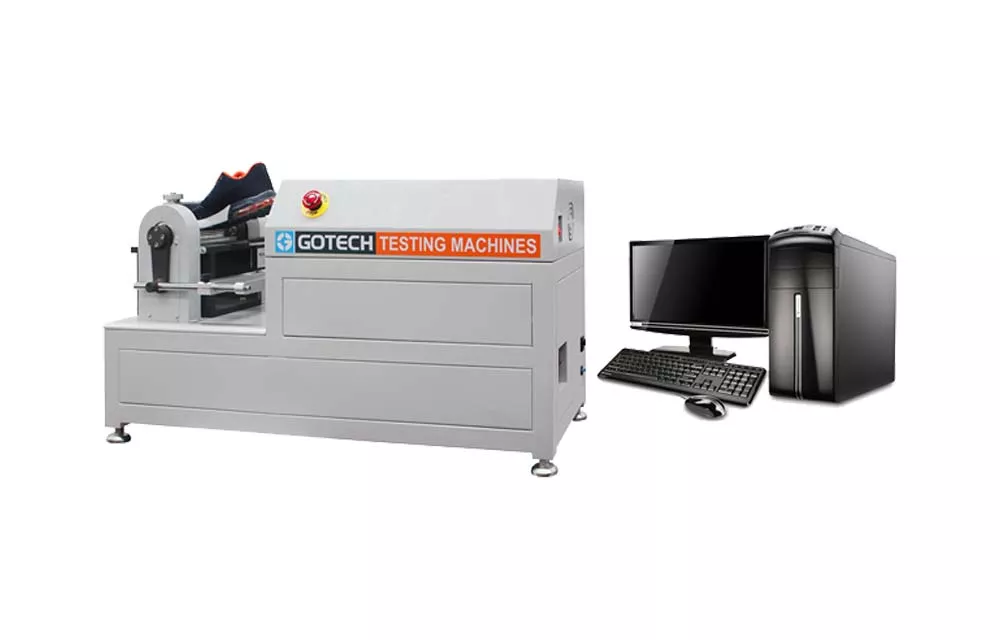

Capable of twisting the shoe specimen in both clockwise and counterclockwise directions at a specific angle and speed and measuring the corresponding torque, enabling operators to evaluate the torsional stiffness of shoes.
Capable of flexing the shoe specimen to a specific angle in the longitudinal direction and measuring the corresponding flexing force.
Utilizes advanced torque sensor and load transducer to precisely capture test data, enabling operators to accurately assess the torque and flexing performance of footwear.
Enables manufacturers to verify the performance of finished shoes, ensuring their products meet specific quality standards.
Equipped with a dedicated computer control system, this instrument performs automatic operation during testing, minimizing human errors and enhancing work efficiency.
To minimize manual intervention, this instrument can automatically perform tests and efficiently capture test data, significantly reducing production time and costs.
With adjustable test conditions, this instrument can precisely perform either torsion tests or flex tests, meeting a wide range of testing requirements.
Using a high-precision servo control system, the GT-7011-PAS ensures precise speed control to maintain high stability during operation.
The dedicated software and flexible parameters settings allow operators to easily set and modify test conditions to meet a variety of testing requirements.
By monitoring and recording real-time data during test processes, the GT-7011-PAS offers clear insights into both the test development and the test results.
Allows operators to record and search test results to assist them in materials performance evaluation.
Equipped with safety features such as overload protector and emergency stop switch, this instrument ensures user safety during operation.
| Torsional stiffness test | Capacity | 50N．m |
| Load minimum reading | 0.1N．M | |
| Test angle | Max. angle: 10±0.5° | |
| Timer minimum reading | 0.5 s | |
| Longitudinal stiffness test | Test speed | 0.5±0.1 Hz |
| Grip diameter | 6±0.05 mm | |
| Flexing position | One-third of the total length of shoe | |
| Capacity | 200 N | |
| Max. flexing angle | 50±2° | |
| Operating system | Dedicated software | |
| Dimensions (approx.) (W×D×H) | 100×40×54 cm | |
| Power | 1∮ 220V 50Hz 300W (or specify) | |
