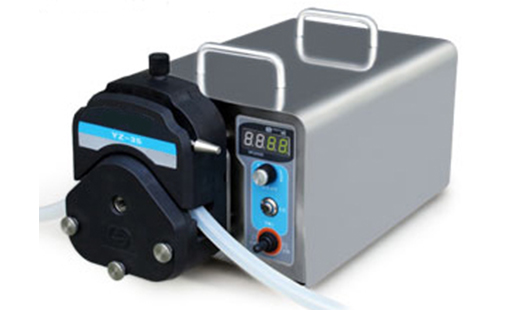

Industrial Stainless Steel Peristaltic Pump WG600S Serials

Industrial Stainless Steel Peristaltic Pump WG600S Serials

WG600S is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic function such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Stainless steel housing.
• keypad controls running speed, reversible direction, start/stop, full speed, easy operation.
• Applicable pump head: YZ35, 2xYZ35.
• One channel flow range: 0.4-13(L/min).
• Speed resolution: 1rpm.
• Four-figure digital LED indicator displays working speed.
• Brushless motor drive, free maintenance.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the
organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator, can choose 5V,12V,24V. External analog adjusts the rotate speed, can choose 0-
5V/10V, 4-20mA.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
Technical Data:
• One channel flow range: 0.4-13L/min
• Flow accuracy:<3%
• Speed range: 30-600rpm.
• Speed resolution: 1 rpm
• Power supply: AC 220V±10%,50Hz, 110V/60Hz
• Power consumption: <300W
• External control: Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface:RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:<80%
• IP grade:IP31
• Dimensions (LxWxH): 340mmx235mmx175mm
• Weight: 13KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WG600S-D1 1 YZ35PPS 73#,82# 400~13000
WG600S-D2 2 YZ35PPS x 2 73#,82# 400~13000
