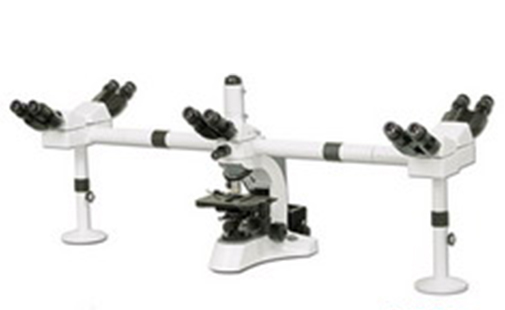

N-510 Series Multi-viewing Microscope

N-510 Series Multi-viewing Microscope

Description
Multi-viewing Microscope allows people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Specification:
N-510 N-306 N-204
Optical System Infinite Optical System
Viewing Head Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 1PC 1PC
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 4PCS 2PCS 1PC
Eyepiece Extra Wide Field Eyepiece EW10x/20 10PCS 6PCS 4PCS
Nosepiece Inverse Quintuple Nosepiece
Objective Infinite Plan Achromatic Objective 4×,10×,40×,100×
Condenser Swing Condenser N.A.0.9/ 0.25
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Kohler Illumination External Illumination, Halogen Lamp 12V/ 50W
Pointer Green LED Pointer , Brightness Adjustable
Dual Color Pointer , Brightness Adjustable
Photo Attachment
Video Adapter C Mount 1×
C Mount 0.5×
Note: ●Standard Outfit   ○Optional
