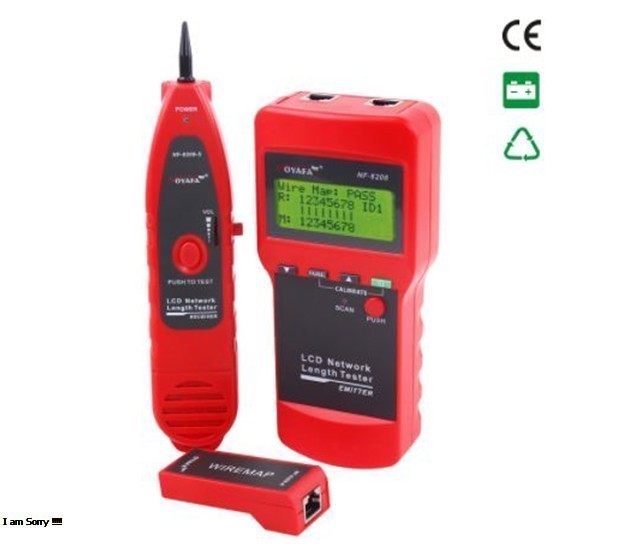

NF-8208 LCD Network Length Tester

NF-8208 LCD Network Length Tester

Features:
1. Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.
2. Measure length of network cable, and locate the breakage point.
3. Tone trace cable in bundle of unknown cables quickly.
4. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
5. LCD light assists use in dark corners.
6. Enables cables to be located even when totally concealed.
Attention:
1.Don’t connect high voltage live lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

NF-8208 Transmitter specifications
 LCD Screen  LCD 53×25 mm without backlight
 Tone frequency  225kHz
 Max. distance of transmission  2 km
 Max. distance of cable map  1 km
 Max. working current  Less than 70mA
 Tone mode  2 Tones adjustable
 Compatible connectors  RJ45
 Function and faults LCD display  LCD display ( wiremap, Tone, short, , No adapter, Low  battery )
 Cable map indication  LCD (#1-#8)
 Shielded indication  LCD ( #9)
 Battery Type  1.5V AA battery * 4
 Dimension(LxWxD)  185x80x32mm
 NF-8208 Receiver specifications
 Frequency  225kHz
 The Max. working current  Less than 70mA
 Earjack  1
 LED illumination  2
 Battery Type  DC9.0V(NEDA 1604/6F22 DC9V) x1pc
 Dimension(LxWxD)  218x46x29 mm
 NF-8208 Remote unit specifications
 Compatible connectors  RJ45
 Dimension(LxWxD)  107x30x24mm



Function NF-838 NF-300 NF-308 NF-8200 NF-8208 NF-8108
Find Cables RJ45+RJ11 RJ45+RJ11 RJ45+RJ11 RJ45+RJ11 RJ45 X
BNC+USB +1394 BNC+USB BNC+USB
Measure cable length X RJ45+BNC RJ45 RJ45+RJ11 RJ45 RJ45
Check cable condition RJ45+RJ11 RJ45+BNC+RJ11 RJ45+BNC RJ45+RJ11 RJ45 RJ45
BNC+USB +1394
Anti-current interference ok Good ok Good ok ok
Power supply 9V Battery 9V Battery 9V Battery 1.5V AA 1.5V AA 1.5V AA
X
