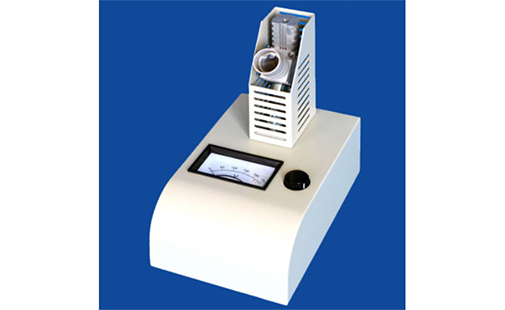

RY-1 Analog Melting Point Apparatus Tester

RY-1 Analog Melting Point Apparatus Tester
Melting point is the temperature of something turning to liquid from solid. Testing is the main method to detect some characters such as purity etc. The tester is suitable for testing melting point of drug, spice and dye etc.
1.  Test temperature with standard mercury thermometer.
2.  Adjust heating voltage by a knob.
3.  Display voltage with an analog voltmeter.
4.  Observe melting sample by a magnifier.
5.  Test three samples at the same time.
Technical Parameters:
1. The range of melting point: 50-300°C
2. Accuracy: +/-1°C
3. Usage temperature: 15-35°C
4. Rate: 1.0, 2.0, 4.0, 6.0°C/min
5. Power: 100 W
6. Power supply: AC,220V/50HZ
7. Weight: 3kg
8. Overall size: 190x120x200mm
