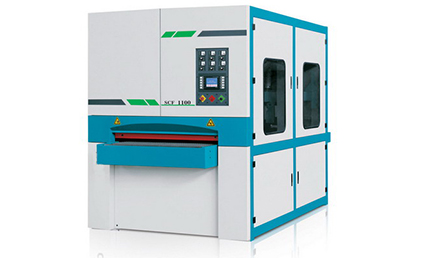

SCF1100 Curve Surface Sander

Characteristics

SCF1100 curve surface sander specializes in polishing doors, cabinet doors, furniture etc. Thant is the ideal solution for different sanding applications including whitewood, colour-wood and lacquer sanding. It has 4 sanding system with own control inverter.

Working thickness	10-100mm	Lift motor of back brush roller	0.37kw
Working width	50-1100mm	Front brush plate motor	1.5kw
Front brush roller speed	50-300r/min	Back brush plate motor	1.5kw
Back brush roller speed	50-300r/min	Swing motor of front brush plate	0.37kw
Brush plate speed	50-300r/min	Swing motor of back brush plate	0.37kw
Brush plate group	10-60time/min	Feeding motor	2.2kw
Conveyor belt size (WXP)	1100x6560mm	Lift motor of feeding table	1.5kw
Front brush roller motor	2.2kw	Vacuum motor	7.5kwx2
Back brush roller motor	2.2kw	Volume of sucked air	9000m3/h
Lift motor of front brush roller	0.37kw	Speed of sucked air	25-30m/s
