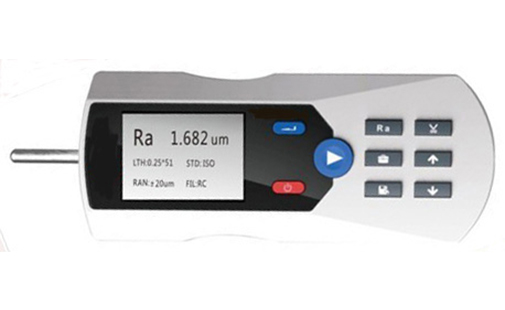

SRT-2000 Professional Surface Roughness Tester

Professional Surface Roughness Tester SRT-2000

Features:
1. With ARM processor, the measurement speed is fast, and the computation time is short.
2. The real-time operating system was transplanted to support multi task parallel processing.
3. Built in wireless module to support wireless printing and wireless data transmission
4. Some models use 128 x 64 FSTN dot matrix display, digital / graphic display
5. Some models use 2.2 inch LCD screen, with a resolution of 320*240, support 260 thousand colors
6. Display information rich, intuitive, can display all parameters and graphics
7. Compatible with ISO, DIN, ANSI, JIS, a number of national standards
8. Can display the charging process instructions, the operator can always understand the degree of charge
9. When the backlight is not open, the working time is more than 10 hours.
10. Large capacity data storage, the machine FLASH can store 200 sets of original data and waveform
11. Scalable Micro SD card storage, maximum of up to 16G
12. SD card format can be selected for the user manual for users on the roughness of the instrument directly
13. Compatible with a variety of standard sensors, deep groove sensor, surface sensor and small hole sensor
14. Sensor structure is optimized, and the measured value is more stable.
15. Embedded software upgrade can be realized by using serial interface
Main Specifications
1. Measurement range: support Ra, Rz, Rq, Rt, Rp, Rv, R3z and other 16 parameters
2. Ra, Rq: 0.005~16um
3. Rz, Ry, Rt, Rp, Rv, Rmax, R3z, Rz (JIS): 0.02~160um
4. RS, RSm: 1mm
5. Rmr: 0~100% (%Rt)
6. Rsk: 0~100%
