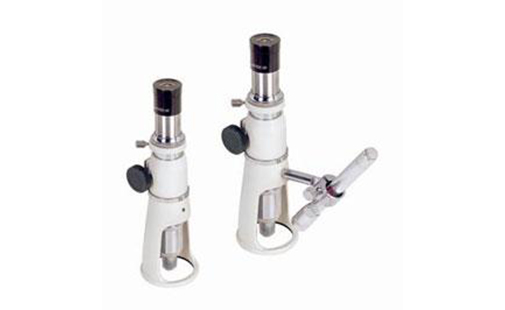

XC Serials Portable Measuring Microscope

Portable Measuring Microscope XC Serials



XC-100L XC-50L XC-40L XC-20L

Total Magnification

100× 50× 40× 20×

Mechanical Tube Length

160mm

Eyepiece

10×

Objective

10×

Numerical Aperture

0.25 0.12 0.1 0.05

Diameter of Viewing field in Eyepiece

φ18mm

Eyepiece Reticle

0.1mm

Fine Division

0.01mm 0.02mm 0.025mm 0.05mm

Working Distance

6.93mm 17.6mm 18mm 17.2mm

Focus Range

30mm

Diameter of Bearing Plane

φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, No.7 battery



XC-100

XC-60

XC-40

XC-20

XC-100L

XC-60L

XC-40L

XC-20L

Eyepiece10×/ Cross with Reticle

Objective10×













Objective5×













Objective4×













Objective2×













Pen Light Illumination
(with holder)
