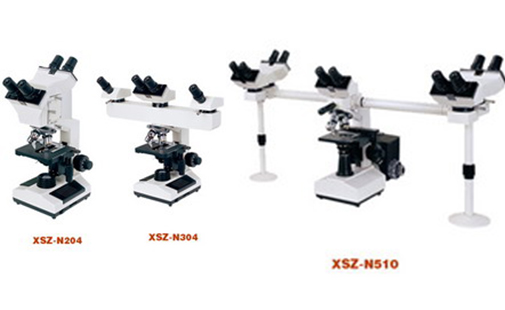

XSZ-N204 Series Multi-viewing Microscope

XSZ-N204 Series Multi-viewing Microscope

The microscope is equipped with five heads for five persons observing at the same time.

Specification: XSZ-N204 XSZ-N304 XSZ-510
Viewing Head Sliding Binocular Head, lnclined at 45° 2Pcs 1Pc 5Pcs
Monocular Head, lnclined at 45°   2Pcs
Eyepiece Wide Field Eyepiece WF10× 4Pcs 4Pcs 10Pcs
Nosepiece Quadruple Nosepiece
Objective Achromatic Objective 4×, 10×, 40×,100×
Condenser Abbe Condenser NA1.25
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm
Plain Stage 140×140mm/ 75×50mm
lllumination Halogen Lamp 6V/ 20W
Halogen Lamp 24V/ 100W
Pointer Green LED Pointer , Brightness Adjustable
