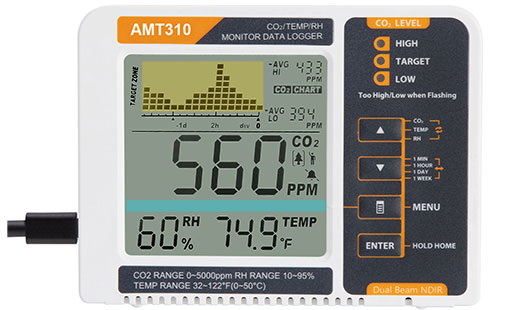

AMT310 CO2 Temp. RH Monitor with Data Logger

Features:

1. Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improvethe long term stability

2. CO2/Temperature/RH Monitor; Tracer

3. Chart with variable time Zoom Levels

4. Build-In Plant Types Directory

5. 3-color LED (green / yellow / red) gradually changes color with CO2 concentration

6. Foolproof “Hold Home” function

7. CRR, CO2 Replenish Reminder

1. CO2 Measurement:

1) CO2 Range: 0~5000ppm

2) Sensor Type: Dual-Beam NDIR

3) Accuracy at 0~3000ppm: ±50ppm or ±5% of reading, whichever is greater; Accuracy over 3000ppm ±7%

4) Repeatability: 20ppm at 400ppm (standard dev. of 10 readings in 1 minute)

5) Display resolution: 1ppm (0~1000); 5ppm(1000~2000); 10ppm (>2000)

6) Temp dependence: ±0.1% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C

7) Pressure dependence: 0.13% of reading per mmHg (corrected by user’s altitude input)

8) Response time: <2 min for 63% of step change or <4.6min for 90% step change

9) Warm-up time: <30 sec

2. Temp Measurement:

1) Operating Temperature: 32°F to 122°F; 0°C-50°C; Storage Temperature: -4°F to 140°F (-20°C to 60°C)

2) Display Resolution: 0.2°F (0.1°C)

3) Accuracy: ±1°F (±0.5°C)

4) Response time: <20min (63%)

3. RH Measurement:

1) Range: 0~100%

2) Accuracy: ±5%

3) Resolution: 1% on main reading, 0.1% on Max Min Reading

4) Operating & Storage RH: 0~95% non-condensing

4. Power Requirements: DC5V, 160mA peak, 15m aaverage at 5.0V, Power port: Micro USB

5. Dimensions (L x W x D): 4.7 x 3.6 x 1.1 inches; 120*91.2*27mm
